Product Summary
The NJU7670M is a voltage tripler incorporated CR oscillator, voltage converter, reference voltage circuit and voltage regulator. It can generate triple or double negative voltage of an operating voltage ranging from -2.6V to -6V.
Parametrics
Absolute maximum ratings: (1)supply voltage:|VDD-VOUT|≤20V; (2)input voltage: VIN-0.5V to +0.5V or VOUT-0.5V to +0.5V; (3)output voltage:-20.0V; (4)power dissipation: 700mW(DIP),300mW(DMP),250mW(SSOP); (5)operating temperature range:-20℃ to +75℃; (6)storage temperature range:-40℃ to +125℃.
Features
Features: (1)Triple/double voltage output; (2)operating voltage:-2.6V to -6.0V; (3)high efficiency voltage conversion rate:95%(Iout=5mA); (4)high output current:MAX 20mA(VIN=-5V); (5)CR oscillator ON-chip; (6)output-off function by external signal: ON/OFF of V; (7)C-MOS technology; (8)package outline: DIP/DMP/SSOP 14.

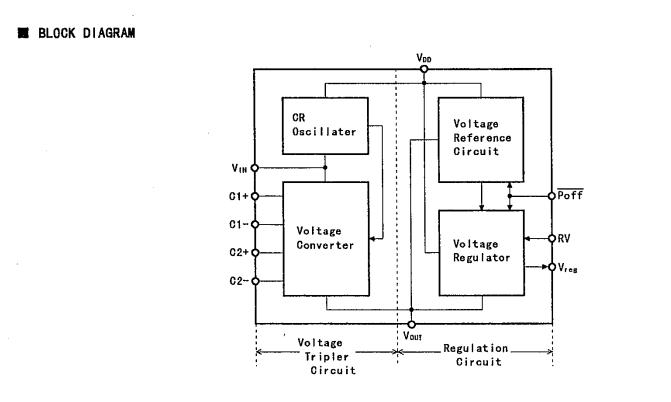

Diagrams
