Product Summary

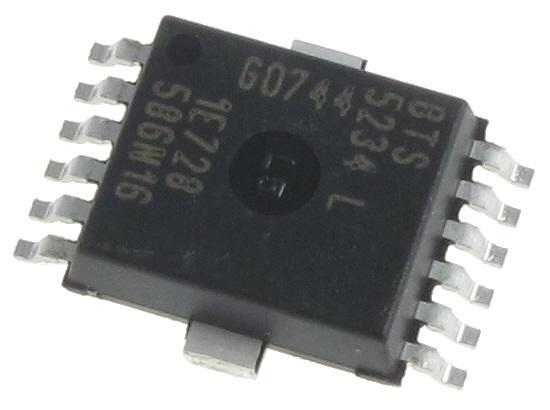

The BTS5234L is a dual channel high-side power switch (two times 60 mΩ) in P-DSO-12-2 power package providing embedded protective functions.
Parametrics
Absolute maximum ratings: (1)Supply voltage: -16 V min and 28 V max; (2)Supply voltage for full short circuit protection (single pulse) (Tj(0) = -40℃ to 150℃): 0 V min and 28 V max at L = 8 μH,; (3)R = 0.2 Ω; (4)Voltage at power transistor: 52 V max; (5)Supply Voltage for Load Dump protection: 41 V max at RI = 2 Ω, RL = 6.8 Ω.
Features
Features: (1)Very low standby current; (2)3.3 V and 5 V compatible logic pins; (3)Improved electromagnetic compatibility (EMC); (4)Stable behavior at under voltage; (5)Logic ground independent from load ground; (6)Secure load turn-off while logic ground disconnected; (7)Optimized inverse current capability.

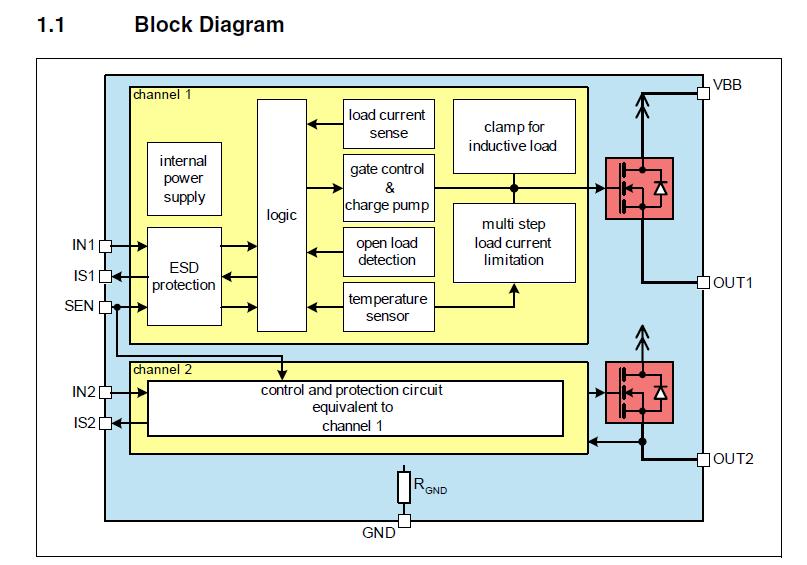

Diagrams
