Product Summary
The BTS5240L’s N channel vertical power MOSFET is with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. It provides embedded protective functions, and it extern adjustable current limitation.
Parametrics
Absolute maximum ratings: (1)Supply voltage (overvoltage protection): 28 V; (2)Supply voltage for full short circuit protection; Tj = -40 to 150℃: 28 V; (3)Maximum voltage across: 52 V; (4)Load dump protection VLoadDump = VA + VS; VA = 13,5 V; (5)In = low or high; td = 400 ms; RI = 2 Ω: RL = 2.25 Ω: 40 V, RL = 6.8 Ω: 53 V; (6)Load current (Short - circuit current): IL(lim) A; (7)Operating temperature range: -40 to +150 ℃; (8)Storage temperature range: -55 to +150 ℃.
Features
Features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Stable behaviour at low battery voltage.

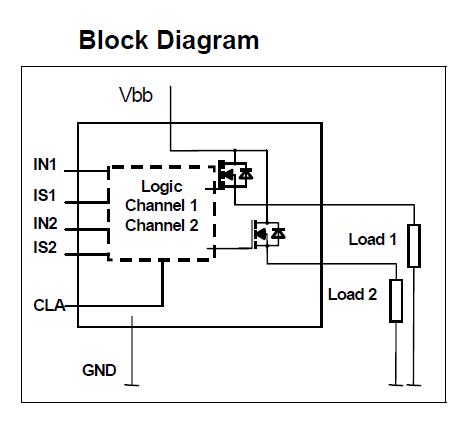

Diagrams
