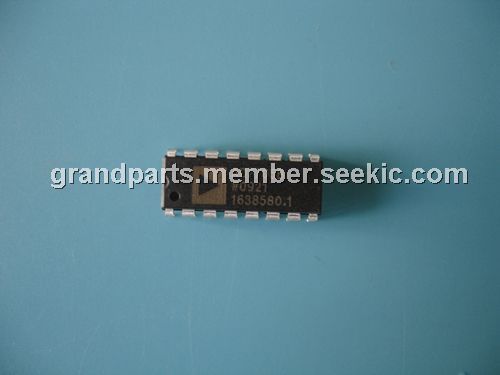

AD7705BNZ

analog front end, ADC, 16BIT, 16-DIP, -0.3μV to +7μV, Power Dissipation 1 mW max

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.20~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.20~8.00

PartNumber:: AD7705BNZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anna's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-17

From Other Seller

Part Number:AD7705BNZ
US $4.20 - 8.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AAD7705BNZ is a complete analog front end for low frequency measurement applications. The two-/three-channel device can accept low level input signals directly from a transducer and produce a serial digital output. The AD7705BNZ employs a sigmadelta conversion technique to realize up to 16 bits of no missing codes performance. The selected input signal is applied to a proprietary programmable gain front end based around an analog modulator. The modulator output of the AD7705BNZ is processed by an onchip digital filter. The first notch of this digital filter can be programmed via an on-chip control register allowing adjustment of the filter cutoff and output update rate.

Parametrics

AD7705BNZ absolute maximum ratings: (1)VDD to GND: -0.3μV to +7μV; (2)Analog Input Voltage to GND: -0.3 V to VDD + 0.3 V; (3)Reference Input Voltage to GND: -0.3 V to VDD + 0.3 V; (4)Digital Input Voltage to GND: -0.3 V to VDD + 0.3 V; (5)Digital Output Voltage to GND: -0.3 V to VDD + 0.3 V; (6)Operating Temperature Range: 0℃ to +85℃; (7)Storage Temperature Range: -5℃ to +150℃; (8)Junction Temperature: +150℃; (9)Plastic DIP Package, Power Dissipation: 450 mW; (10)qJA Thermal Impedance: 105℃/W; (11)Lead Temperature, (Soldering, 10 sec): +260℃.

Features

AD7705BNZ features: (1)Two Fully Differential Input Channel ADCs; (2)Programmable Gain Front End Gains from 1 to 128; (3)Three-Wire Serial Interface; (4)Ability to Buffer the Analog Input; (5)2.7 V to 3.3 V or 4.75 V to 5.25 V Operation; (6)Power Dissipation 1 mW max @ 3V; (7)Standby Current 8 mA max; (8)16-Lead DIP, 16-Lead SOIC and TSSOP Packages.
