Product Summary

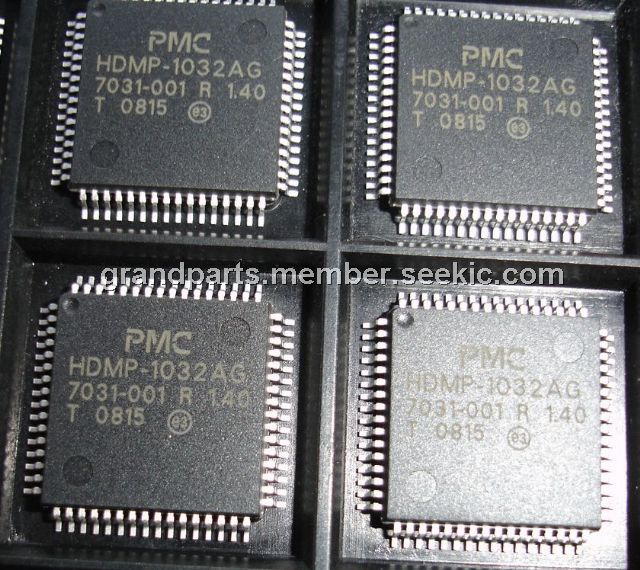

The HDMP-1032AG transmitter is used together to build a high-speed data link for point-to-point communication. The silicon bipolar transmitter chip is housed in standard plastic 64 pin PQFP packages. This HDMP-1032AG is applied in Cellular base station, ATM switch, Backplane/bus extender, Video, image acquisition, Point to point data link, implement SCI-FI standard and so on.

Parametrics

HDMP-1032AG absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to 5.0 V; (2)VIN,TTL TTL Input Voltage: -0.7 to 5.5 V ; (3)VIN,BLL H50 Input Voltage: 2.0 to VCC V ; (4)IO,TTL TTL Output Source Current: 13 mA max; (5)Tstg Storage Temperature: -65 to +150 ℃; (6)TJ Junction Temperature: 0 to +150 ℃; (7)Tmax Maximum Assembly Temperature (10 seconds maximum): +260 ℃ max.

Features

HDMP-1032AG features: (1)3.3 V supply, low power dissipation 660 mW Tx, 792 mW Rx; (2)On-chip encode/decode using Conditional Inversion Master Transition (CIMT) protocol; (3)1:N broadcast ready configurable receiver inputs allow multi-point data broadcast using a single transmitter; (4)Parallel Automatic Synchronization System (PASS) allows receiver to read recovered words with local reference clock; (5)Robust simplex mode; (6)Wide range serial rate 260-1400 MBaud (user selectable); (7)5 V tolerant TTL interface 16 or 17 Bits wide; (8)Low cost 64 pin plastic package 14x14 mm2 PQFP.

Diagrams

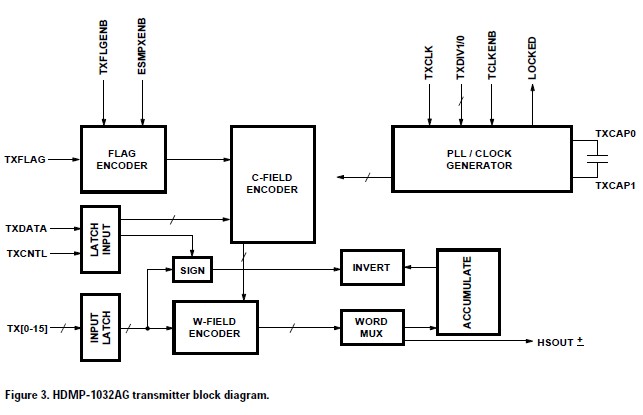

HDMP-1032AG block diagram
