AD636JHZ

Low Level, True RMS-to-DC Converter, TO100-10, ±16.5 V, 1.0% Max Error

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.80~8.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.80~8.20

PartNumber:: AD636JHZ

Brand:: Analog Devices - ADI | Pack: CAN | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anna's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-17

From Other Seller

Part Number:AD636JHZ
US $5.80 - 8.20
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

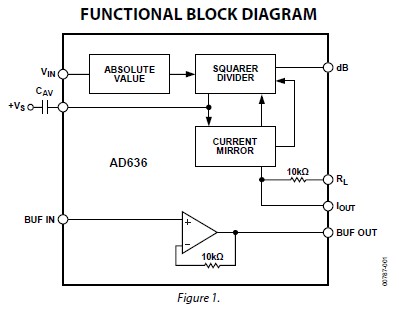

The AD636JHZ is a low power monolithic IC that performs true rms-to-dc conversion on low level signals. It offers performance that is comparable or superior to that of hybrid and modular converters costing much more. The AD636JHZ is specified for a signal range of 0 mV to 200 mV rms. Crest factors up to 6 can be accommodated with less than 0.5% additional error, allowing accurate measurement of complex input waveforms. The low power supply current requirement of the AD636JHZ, typically 800 μA, is ideal for battery-powered portable instruments. It operates from a wide range of dual and single power supplies, from ±2.5 V to ±16.5 V or from +5 V to +24 V. The input and output terminals of the AD636JHZ are fully protected; the input signal can exceed the power supply with no damage to the device (allowing the presence of input signals in the absence of supply voltage), and the output buffer amplifier is short-circuit protected.

Parametrics

AD636JHZ absolute maximum ratings: (1)Dual Supply: ±16.5 V; (2)Single Supply: +24 V; (3)Internal Power Dissipation2: 500 mW; (4)Maximum Input Voltage: ±12 V Peak; (5)Storage Temperature Range N, R: –55℃ to +150℃; (6)Operating Temperature Range: 0℃ to +70℃; (7)Lead Temperature Range (Soldering 60 sec): +300℃; (8)ESD Rating: 1000 V.

Features

AD636JHZ features: (1)True RMS-to-DC Conversion; (2)200 mV Full Scale; (3)Laser-Trimmed to High Accuracy: 1.0% Max Error (AD636J); (4)Wide Response Capability: Computes RMS of AC and DC Signals, 1 MHz –3 dB Bandwidth: V RMS >100 mV, Signal Crest Factor of 6 for 0.5% Error; (5)dB Output with 50 dB Range; (6)Low Power: 800 mA Quiescent Current; (7)Single or Dual Supply Operation; (8)Monolithic Integrated Circuit; (9)Low Cost.
