Product Summary
The TLE4473GV55-2 is a monolithic integrated voltage regulator with two very low drop outputs, a main output Q1 for loads up to 300 mA and a stand by output Q2 providing a maximum of 190 mA.
Parametrics
Absolute maximum ratings: (1)Input I: Voltage: -42 V min and 45 V max, Current: Internally limited; (2)Stand-by Output Q2: Voltage: -0.3 V min and 18 V max, Current: Internally limited; (3)Main Output Q1: Voltage: -0.3 V min and 18 V max, Current: Internally limited.
Features
Features: (1)Stand-by output 190 mA; 5 V ±2%; (2)main output: 300 mA, 5 V tracked to the stand-by output; (3)low quiescent current consumption; (4)disable function separately for both outputs; (5)wide operation range: up to 42 V; (6)very low dropout voltage; (7)2 independent reset circuits; (8)watchdog; (9)output protected against short circuit; (10)wide temperature range: -40 ℃ to 150 ℃; (11)overtemperature protection; (12)overload protection.

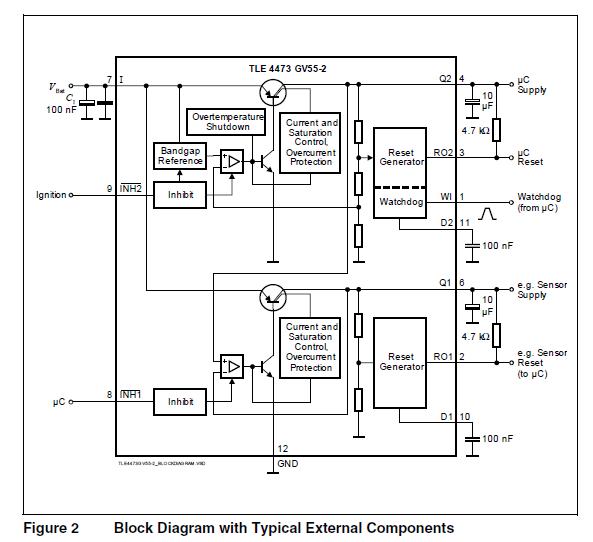

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE4473GV55-2 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
