MAX313ESE+T

10Ω, Quad, SPST, CMOS Analog Switches, 16SOIC, -0.3V to +44V, Rail-to-Rail Signal Handling

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.72~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.72~1.20

PartNumber:: MAX313ESE+T

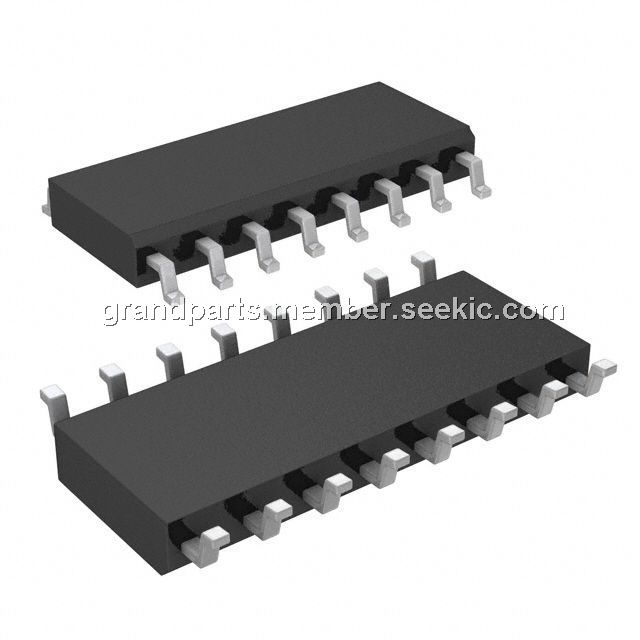

Brand:: Dallas Semiconductor - Maxim | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anna's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-17

From Other Seller

Part Number:MAX313ESE+T
US $0.72 - 1.20
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

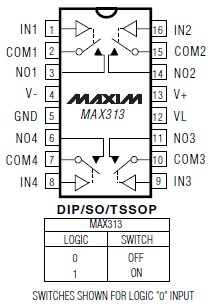

The MAX313ESE+T is an analog switch. The device features low on-resistance (10Ω max) and 1.5Ω onresistance matching between channels. The MAX313ESE+T is +3V logic compatible when powered from ±15V or +12V supplies. The switch conducts equally well in either direction, and offer low leakage over temperature. The MAX313ESE+T has two NC switches and two NO switches. The device operates from a single +4.5V to +36V supply or from dual ±4.5V to ±20V, and is available in 16-pin TSSOP, SO, and DIP packages. The applications of the MAX313ESE+T include Test Equipment, Communication Systems, PBX, PABX Systems, Audio Signal Routing, Avionics, Sample-and-Hold Circuits, Data-Acquisition Systems and xDSL Modems.

Parametrics

MAX313ESE+T absolute maximum ratings: (1)Voltages Referenced to GND: V+: -0.3V to +44V; V-: +0.3V to -44V; V+ to V-: -0.3V to +44V; VL: (GND - 0.3V) to (V+ + 0.3V); all Other Pins: (V- - 2V) to (V+ + 2V) or 30mA (whichever occurs first); (2)Continuous Current (COM_, NO_, NC_): ±100mA; (3)Peak Current (COM_, NO_, NC_): ±300mA; (4)Continuous Power Dissipation (TA = +70℃): Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; Narrow SO (derate 8.70mW/℃ above +70℃): 696mW; CERDIP (derate 10.00mW/℃ above +70℃): 800mW; TSSOP (derate 6.7mW/℃ above +70℃): 457mW; (5)Operating Temperature Ranges: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

MAX313ESE+T features: (1)+3V Logic-Compatible Digital Inputs: VIH = 2.0V; VIL = 0.8V; (2)Pin Compatible with MAX312/MAX313/MAX314 and DG411/DG412/DG413; (3)Low On-Resistance (10Ω max); (4)Guaranteed RON Match Between Channels (1.5Ω max); (5)Guaranteed RON Flatness over Specified Signal Range (2Ω max); (6)Crosstalk > 96dB at 20kHz; (7)Single-Supply Operation: +4.5V to +36V; Dual-Supply Operation: ±4.5V to ±20V; (8)Rail-to-Rail Signal Handling.
