Product Summary
The TLE6250G is a monolithic integrated circuit that is available as bare die as well as in a P-DSO-8-3 package. The IC is optimized for high speed differential mode data transmission in automotive and industrial applications and is compatible to ISO/DIS 11898.
Parametrics
Absolute maximum ratings: (1)Supply voltage: – 0.3 V min and 6.5 V max; (2)CAN input voltage (CANH, CANL): – 40 V min and 40 V max; (3)Logic voltages at INH, RM, TxD, RxD: – 0.3 V min and VCC max at 0 V < VCC < 5.5 V; (4)Electrostatic discharge voltage at CANH,CANL: – 6 kV min and 6 kV max at human body model (100 pF via 1.5 kΩ); (5)Electrostatic discharge voltage: – 2 kV min and 2 kV max at human body model (100 pF via 1.5 kΩ).
Features
Features: (1)CAN data transmission rate up to 1 MBaud; (2)Suitable for 12 V and 24 V applications; (3)Excellent EMC performance (very high immunity and; (4)very low emission); (5)Version for 5 V and 3.3 V micro controllers; (6)Bus pins are short circuit proof to ground and battery; (7)voltage; (8)Over-temperature protection; (9)Very wide temperature range (- 40℃ up to 150℃).

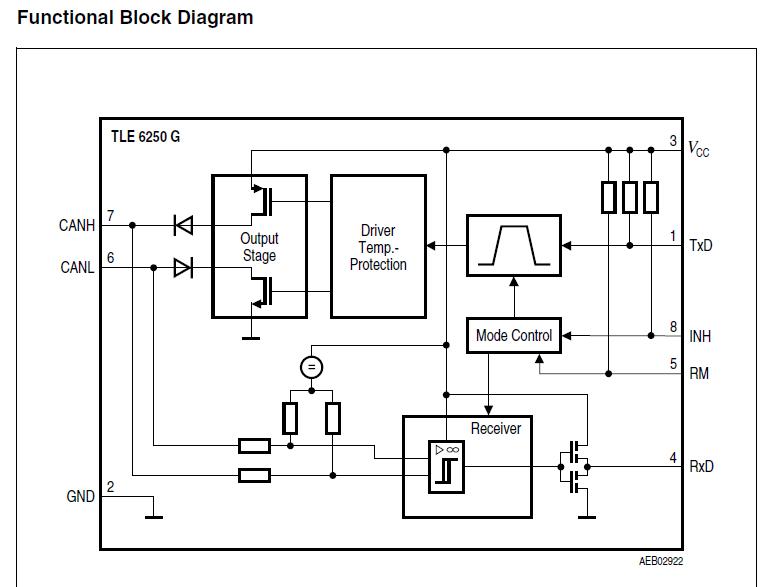

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TLE6250G |
Infineon Technologies |
Network Controller & Processor ICs 12 -24 V 70 mA CAN TRANSCEIVER |
Data Sheet |
|
|
|||||||||||||
TLE6250G ITJKK |
IC TXRX CAN STD HI SPEED |
Data Sheet |
Negotiable |
|
||||||||||||||
TLE6250G V33 |
Infineon Technologies |
Network Controller & Processor ICs 12 -24 V 70 mA CAN Transceiver |
Data Sheet |
|
|
|||||||||||||
TLE6250GNT |
Infineon Technologies |
Network Controller & Processor ICs 12 -24 V 70 mA CAN Transceiver |
Data Sheet |
Negotiable |
|
