Product Summary

The LT1013DIDG4 devices are dual precision operational amplifiers, featuring high gain, low supply current, low noise, and low-offset-voltage temperature coefficient. The LT1013DIDG4 devices can be operated from a single 5-V power supply; the common-mode input voltage range includes ground, and the output can also swing to within a few millivolts of ground.

Parametrics

Absolute maximum ratings: (1)Supply voltage: VCC+: 22 V, VCC-: 22 V; (2)Input voltage range, VI (any input): VCC-: -5 V to VCC+; (3)Differential input voltage: ±30 V; (4)Duration of short-circuit current at (or below) 25℃: Unlimited; (5)Package thermal impedance, θJA: D package: 97℃/W, P package: 85℃/W; (6)Operating virtual junction temperature, TJ: 150℃; (7)Case temperature for 60 seconds: FK package: 260℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: JG package: 300℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.

Features

Features: (1)Single-Supply Operation: Input Voltage Range Extends to Ground, Output Swings to Ground While Sinking Current; (2)Input Offset Voltage: 150 μV Max at 25°C for LT1013A; (3)Offset-Voltage Temperature Coefficient: 2.5 μV/°C Max for LT1013A; (4)Input Offset Current: 0.8 nA Max at 25°C for LT1013A.

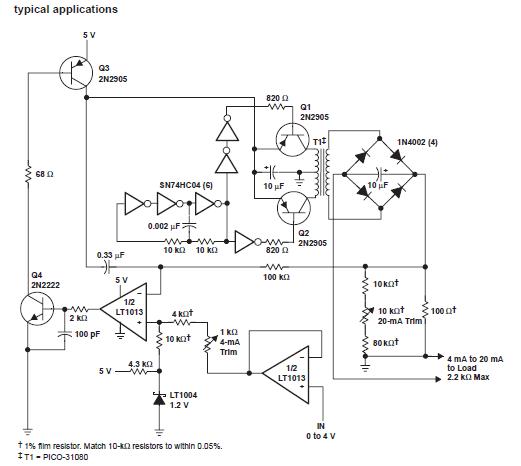

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LT1013DIDG4
LT1013DIDG4

Texas Instruments

Operational Amplifiers - Op Amps Dual Prec Op Amp

Data Sheet

0-1: $1.26
1-25: $1.01
25-100: $0.92
100-250: $0.83
