Product Summary

The XCF32PFSG48C is Programmable Read-Only Memory. It is available in 32 Mb density. The device provides an easy-to-use, cost-effective, and reprogrammable method for storing large Xilinx FPGA configuration bitstreams.

Parametrics

Absolute maximum ratings: (1)Internal supply voltage relative to GND:-0.5V to +2.7V ; (2)I/O supply voltage relative to GND:-0.5V to +4.0V ; (3)JTAG I/O supply voltage relative to GND:-0.5V to +4.0V ; (4)Input voltage with respect to GND: -0.5V to +3.6V; (5)Voltage applied to High-Z output: -0.5V to +3.6V; (6)Storage temperature (ambient):-65℃ to +150℃; (7)Junction temperature:+125℃.

Features

Features: (1)1.8V Supply Voltage; (2)Serial or Parallel FPGA Configuration Interface; (3)Available in Small-Footprint VO48, VOG48, FS48, and FSG48 Packages; (4)Design Revision Technology Enables Storing and Accessing Multiple Design Revisions for Configuration; (5)Built-In Data Decompressor Compatible with Xilinx Advanced Compression Technology; (6)Low-Power Advanced CMOS NOR Flash Process; (7)Endurance of 20,000 Program/Erase Cycles; (8)JTAG Command Initiation of Standard FPGA Configuration; (9)Cascadable for Storing Longer or Multiple Bitstreams; (10)Dedicated Boundary-Scan (JTAG) I/O Power Supply (VCCJ).

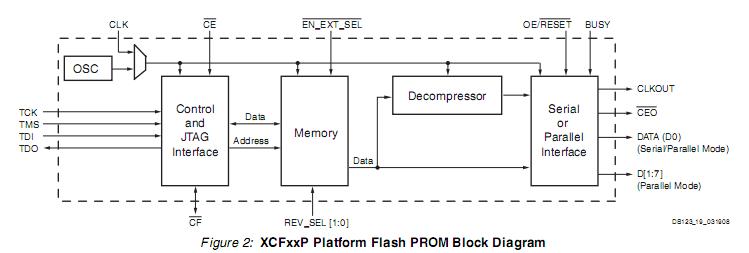

Diagrams

XCF32P
XCF32P
