Product Summary
The TLE7237GS is an eight channel high-side and low-side power switch in PG-SSOP-24-5 package providing embedded protective functions. It is especially designed for standard relays and LEDs in automotive applications. The output stages incorporate two low-side, four high-side and two auto configuring high-side or low-side switches.
Parametrics
Absolute maximum ratings: (1)Power supply voltage: -16 V min and 40 V max; (2)Digital supply voltage: -0.3 V min and 5.5 V max; (3)Power supply voltage for full short circuit protection (single pulse) (Tj = -40 °C to 150 °C): 0 to 28 V; (4)Load current: channel 0, 1, 4, 5, 6, 7: -0.5 A min and 0.5 A max, channel 2, 3: -0.25 A min and 0.25 A max; (5)Voltage at power transistor: 41 V max; (6)Power transistor’s source voltage: -16 V min; (7)Power transistor’s drain voltage: – 41 V min.
Features
Features: (1)8 bit SPI for diagnostics and control, providing daisy chain capability; (2)Very wide range for digital supply voltage; (3)Two configurable input pins offer complete flexibility for; (4)PWM operation; (5)Stable behavior at under voltage; (6)Green Product (RoHS compliant); (7)AEC Qualified.

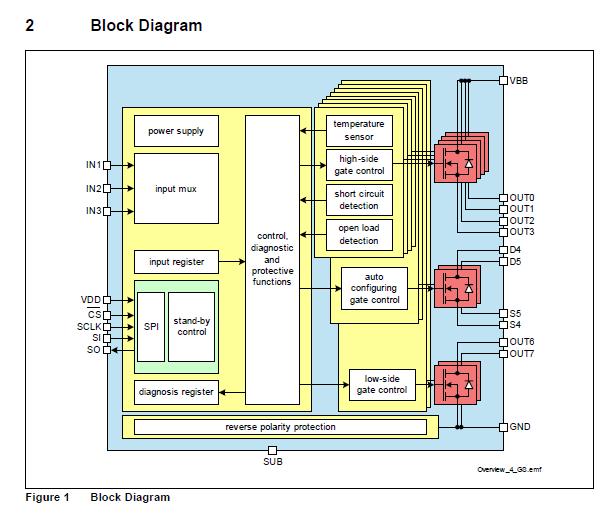

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE7237GS |
Infineon Technologies |
Power Switch ICs - Power Distribution MOSFET POWER DRIVER |
Data Sheet |
Negotiable |
|
||||||||||||
