Product Summary

The BTS5210L’s N channel vertical power MOSFET is with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. It provides embedded protective functions.

Parametrics

Absolute maximum ratings: (1)Supply voltage (overvoltage protection): 43 V; (2)Supply voltage for full short circuit protection; Tj = -40 to 150℃: 36 V; (3)Load current (Short-circuit current): self-limited A; (4)Load dump protection VLoadDump = VA + VS; VA = 13.5 V: 60 V; (5)Operating temperature range: -40 to +150 ℃; (6)Storage temperature range: -55 to +150 ℃.

Features

Features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Fast demagnetization of inductive loads; (5)Stable behaviour at undervoltage; (6)Wide operating voltage range; (7)Logic ground independent from load ground.

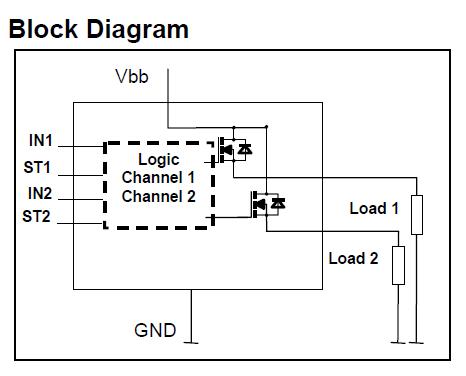

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BTS5210L
BTS5210L

Infineon Technologies

Power Switch ICs - Power Distribution SMART HI SIDE PWR SWITCH 2 CHANNELS

Data Sheet

0-1: $1.83
1-10: $1.65
10-100: $1.33
100-250: $1.27
