Product Summary
The TLE4278G is a monolithic integrated low-drop fixed-voltage regulator which can supply loads up to 200 mA. The device is available in the P-DSO-14-4 package. It is designed to supply microprocessor systems under the severe conditions of automotive applications and therefore is equipped with additional protection functions against over load, short circuit and over temperature.
Parametrics
Absolute maximum ratings: (1)Voltage: -0.3 V min and 7 V max; (2)Current:Internally limited; (3)Current: -100 mA min and 50 mA max; (4)Junction temperature: -50 to 150 ℃; (5)Storage temperature: -50 to 150 ℃.
Features
Features: (1)Output voltage tolerance ≤±2%; (2)Very low current consumption; (3)Separated reset and watchdog output; (4)Low-drop voltage; (5)Watchdog; (6)Adjustable watchdog activating threshold; (7)Settable reset threshold; (8)Overtemperature protection; (9)Reverse polarity protection.

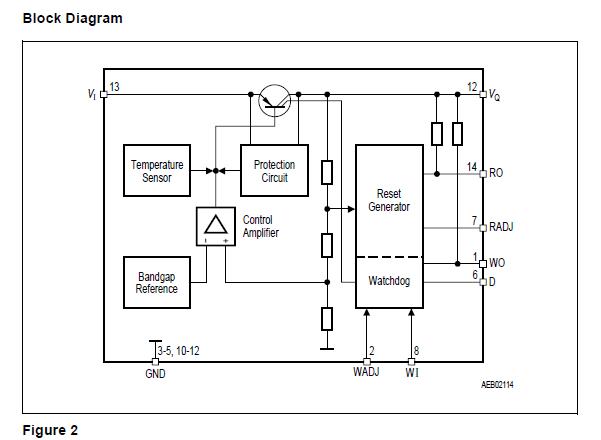

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE4278G |
Infineon Technologies |
Low Dropout (LDO) Regulators Auto Linear 5.5 - 45 V |
Data Sheet |
|
|
||||||||||||
|
TLE4278GXT |
Infineon Technologies |
Low Dropout (LDO) Regulators Voltage Regulator 5V |
Data Sheet |
|
|
||||||||||||
