Product Summary

The AD654JNZ is a monolithic V/F converter consisting of an input amplifier, a precision oscillator system, and a high current output stage. The AD654JNZ operates from a single supply of 5 V to 36 V and consumes only 2.0 mA quiescent current. The low drift (4 μV/℃ typ) input amplifier allows operation directly from small signals such as thermocouples or strain gauges while offering a high (250 MΩ) input resistance. Unlike most V/F converters, the AD654JNZ provides a square-wave output, and can drive up to 12 TTL loads, optocouplers, long cables, or similar loads.

Parametrics

AD654JNZ absolute maximum ratings: (1)Total Supply Voltage +VS to –VS:36 V; (2)Maximum Input Voltage:300 mV to +VS; (3)Maximum Output Current:Instantaneous:50 mA, Sustained:25 mA; (4)Logic Common to –VS:–500 mV to (+VS –4); (5)Storage Temperature Range:–65℃ to +150℃.

Features

AD654JNZ features: (1)Low Cost; (2)Single or Dual Supply, 5 V to 36 V, 65 V to 618 V; (3)Full-Scale Frequency Up to 500 kHz; (4)Minimum Number of External Components Needed; (5)Versatile Input Amplifier: Positive or Negative Voltage Modes, Negative Current Mode, High Input Impedance, Low Drift; (6)Low Power: 2.0 mA Quiescent Current; (7)Low Offset: 1 mV.

Diagrams

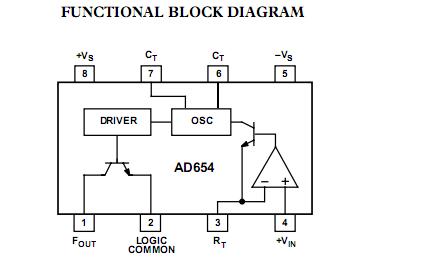

AD654JNZ functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

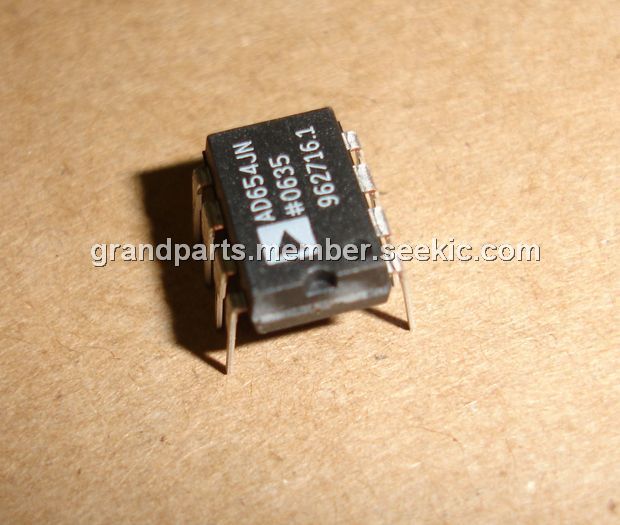

AD654JNZ
AD654JNZ


IC V-F CONVERTER MONO 8-DIP

Data Sheet

0-1: $5.40
1-10: $4.86
10-25: $4.43
25-100: $4.00
100-250: $3.67
250-500: $3.35
500-1000: $2.92
1000-2500: $2.88
AD654JNZ/+
AD654JNZ/+


IC CONV VOLT-FREQ 500KHZ 8DIP

Data Sheet

0-50: $7.04
