Product Summary

The BTS3408G is a dual channel Low-Side Switch with D-MOS output stages for driving resistive, capacitive and inductive loads. The design is based on Infineons Smart Power Technology (SPT) which allows bipolar, CMOS and power D-MOS devices on the same monolithic circuit.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: +4.5 to +60 V; (2)Drain source voltage (OUT1, OUT2): -0.3 to +60 V; (3)Input voltage (IN1, IN2, ENA): -0.3 to +7 V; (4)Continuous input current VIN>7V: 1 mA; (5)FAULT output voltage: -0.3 to +7 V; (6)Operating temperature range: -40 to +150 ℃; (7)Storage temperature range: -55 to +150 ℃; (8)Power dissipation (DC): 0.88 W.

Features

Features: (1)Logic Level Input; (2)Compatible to 3V micro controllers; (3)ESD protection; (4)Thermal shutdown with auto restart; (5)Overload protection; (6)Short circuit protection; (7)Over voltage protection; (8)Open load detection (during Off); (9)Current limitation; (10)Direct parallel control of the inputs; (11)FREEZE functionality for multiplexing; (12)General fault flag.

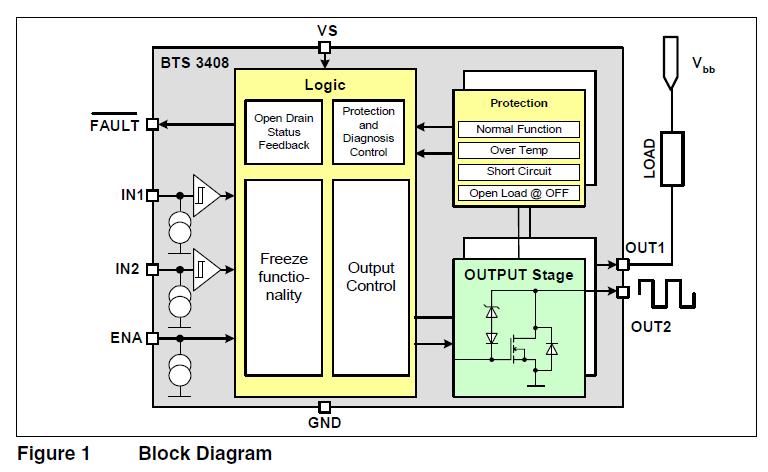

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BTS3408G
BTS3408G

Infineon Technologies

Power Switch ICs - Power Distribution SMART LW SIDE PWR

Data Sheet

0-1: $1.15
1-10: $1.04
10-100: $0.83
100-500: $0.65
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BTS3028SDL
BTS3028SDL

Infineon Technologies

Power Switch ICs - POE / LAN HITFET

Data Sheet

0-1730: $0.79
1730-2500: $0.73
2500-5000: $0.70
5000-10000: $0.68
BTS3028SDR
BTS3028SDR

Infineon Technologies

Power Switch ICs - POE / LAN HITFET SMART LOWSIDE PWR SW

Data Sheet

0-1730: $0.79
1730-2000: $0.73
2000-2500: $0.73
2500-5000: $0.70
BTS3046SDL
BTS3046SDL

Infineon Technologies

Power Switch ICs - POE / LAN HITFET SMART LOWSIDE PWR SW

Data Sheet

0-1740: $0.63
1740-2000: $0.59
2000-2500: $0.59
2500-5000: $0.57
BTS3046SDR
BTS3046SDR

Infineon Technologies

Power Switch ICs - POE / LAN HITFET SMART LOWSIDE PWR SW

Data Sheet

0-1740: $0.63
1740-2000: $0.59
2000-2500: $0.59
2500-5000: $0.57
BTS307
BTS307

Other


Data Sheet

Negotiable
BTS307 E3062A
BTS307 E3062A

Infineon Technologies

Power Switch ICs - POE / LAN PROFET SMART HI SIDE PWR SW

Data Sheet

0-605: $1.46
605-1000: $1.22
1000-2000: $1.16
2000-5000: $1.12
